Checking recognition of actuation state of emergency/compact tensioning retractors - AR91.40-P-0612A
MODEL 170 as of 1.6.98, 203, 208 as of 1.6.98, 209, 210.0 /6 as of 1.6.98, 215, 220, 230
| Inspect | |||
| 1 | Check emergency (compact) tensioning retractor electrically | STAR diagnosis: ↓ | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||

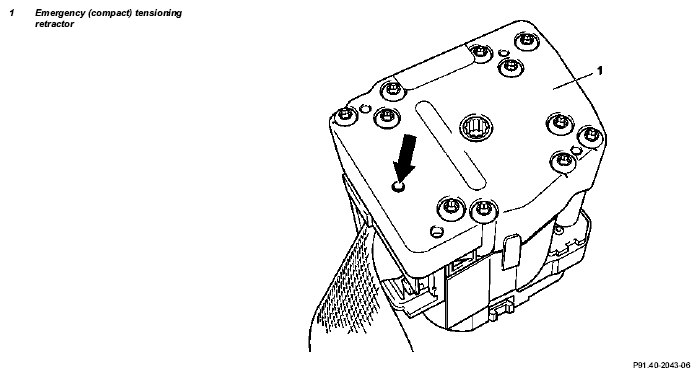

| 2.1 | If the first ignition squib has been fired electrically and the red pin (arrow) is visible, all three ignition squibs have fired | ||
| Notes on disposal of emergency tensioning retractors | All models | OS91.00-P-0001-01A | |
| 2.2 | If the first ignition squib has been fired electrically and the red pin (arrow) is not visible, not all three ignition squibs have fired | Further work: ↓ | |
| Notes on disposal of airbag and emergency tensioning retractors | All models | OS91.40-P-0612-01A | |
| 2.3 | Electric ignition squib has not fired | Further work: ↓ | |
| Ignition of removed emergency tensioning retractors | AR91.40-P-0611-02A | ||
| Ignition of removed emergency tensioning retractors when ignition device is not present | AR91.40-P-0611-05A |
