Connection diagram of test cable to ignition squib connectors - AD91.60-P-2000-07A

Model 124 as of 7/93 except 124.230, except 124.290, except 124.226, except 124.393, except 124.330, except driver/front passenger airbag, except

Model 129 as of 7/93

Model 140 as of 7/93

Model 202 as of 7/93

Model 170, 208

Model 210 up to 2/97, Model 210 as of 6/98 up to 6/99 except window airbag, except rear side airbag, except  , except

Models 461, 602.983

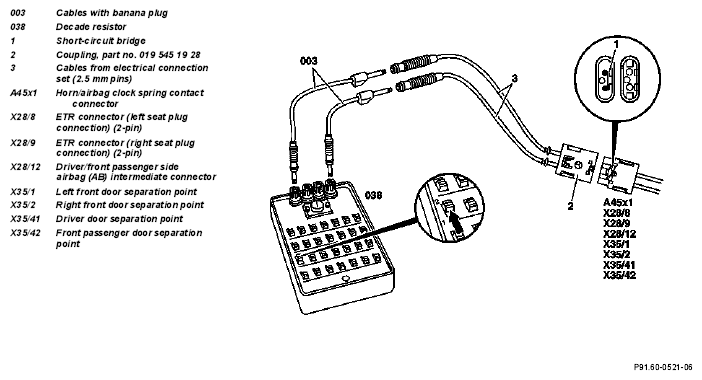

Fig 1: Connection Diagram Of Test Cable To Ignition Squib Connectors
