Connection diagram of decade resistor to ignition squibs coupling - AD91.60-P-2000-08A

IMPORTANT

The squibs which are blocked in the various vehicle models are to be taken from the respective valid wiring diagram.

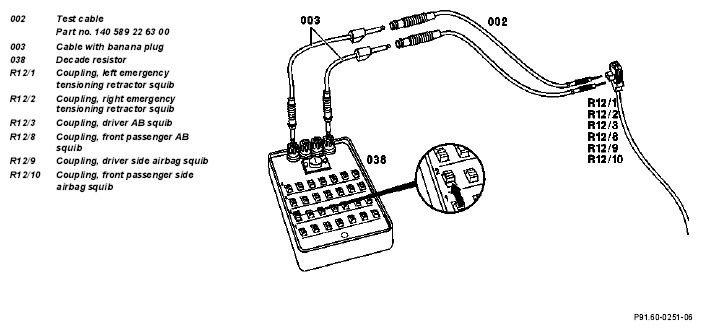

Fig 1: Connection Diagram Of Decade Resistor To Ignition Squibs Coupling
G04632846
