Body & Frame
>>
Seats, Restraint Systems -- 170 Chassis
>>
Basic Knowledge
>>
Supplemental restraint system (SRS), function - GF91.60-P-0002A
>>
Supplemental restraint system (SRS), location of components - GF91.60-P-0002-01C
Supplemental restraint system (SRS), location of components - GF91.60-P-0002-01C
Models 170, 208

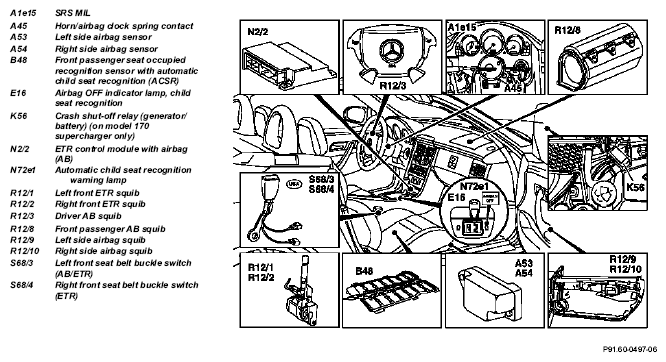

Fig 1: Identifying Supplemental Restraint System (SRS), Components Location
