Supplemental restraint system (SRS) block diagram - GF91.60-P-0002-03A

Models 129, 140, 170, 202, 208

Model 210 without window airbag

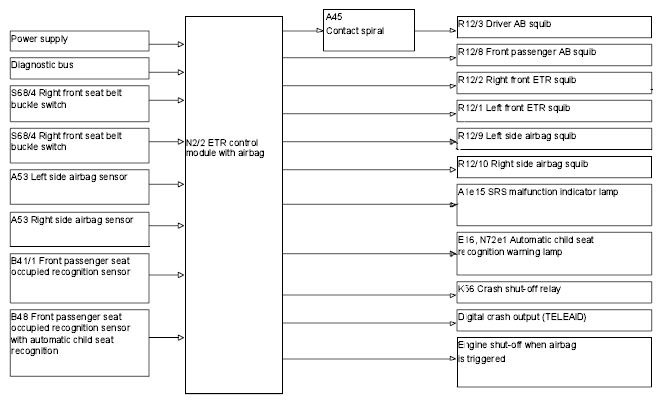

Fig 1: Identifying Supplemental Restraint System (SRS) Block Diagram

• The crash shut-off relay (K56) is installed only on model 170 with supercharged engine.
• The automatic child seat recognition sensor (ACSR) malfunction indicator lamp (E16) or automatic child seat recognition warning lamp (N72e1) are installed only in combination with the front passenger seat occupied recognition sensor with automatic child seat recognition sensor (ACSR) (B48).
• digital crash output (TELEAID, a SA  )
• Engine shut-off only on vehicles with common rail injection (CDR)
• The seat belt buckle switches (S68/3, S68/4) are installed only On versions and models up to 6/93.
