Side airbag sensors, location - GF91.60-P-4009-01A

Model 129 as of 1.9.95, models 140, 170, 202, 210 with code 292, model 208

Illustrated on model 210

The side airbag sensors are located on the cross member below the left and right front seats.

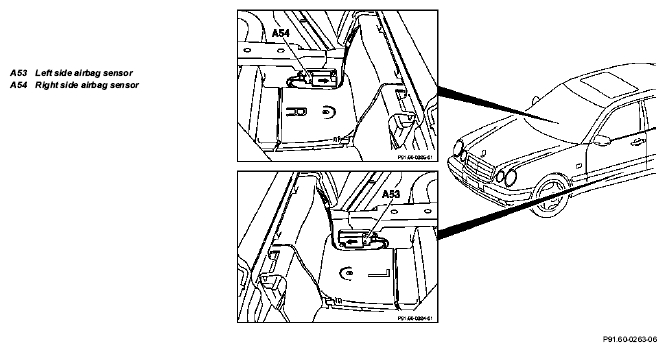

Fig 1: Identifying Left/Right Side Airbag Sensors
G04744654
