Electric seat adjustment (ESA), location of components - GF91.29-P-0004-01LK
Illustrated on right seat

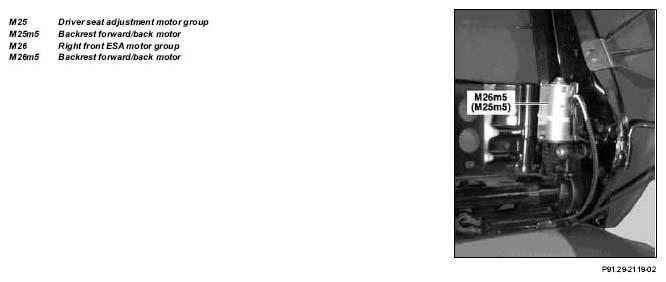

Fig 1: Identifying Electric Seat Adjustment (ESA) Components Location - Illustrated On Right Seat (1 Of 3)
Illustrated on right seat
Fig 2: Identifying Electric Seat Adjustment (ESA) Components Location - Illustrated On Right Seat (2 Of 3)
Illustrated on right seat

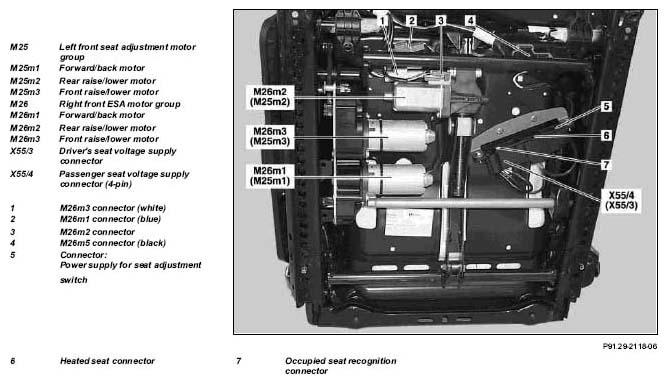

Fig 3: Identifying Electric Seat Adjustment (ESA) Components Location - Illustrated On Right Seat (3 Of 3)

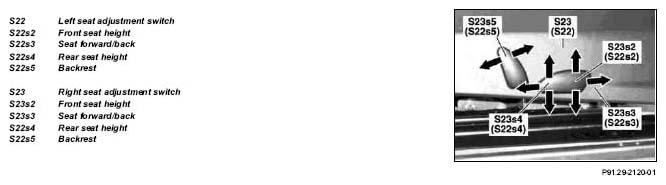

The seat adjustment switches (S22, S23) are located on the associated seat bottom frame on the door side.
Illustrated on vehicle with left-hand steering

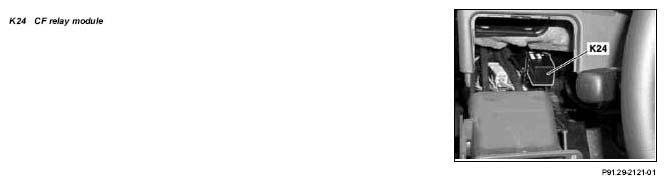

The relay is located between the jacket tube and A-pillar.
