Driver and passenger side airbags, location - GF91.60-P-4004-01A

Model 129 as of 1.9.95, model 208, models 140, 170, 202, 210 with code 292

Illustrated on model 210

The side airbags are installed below the door liner on the front doors.

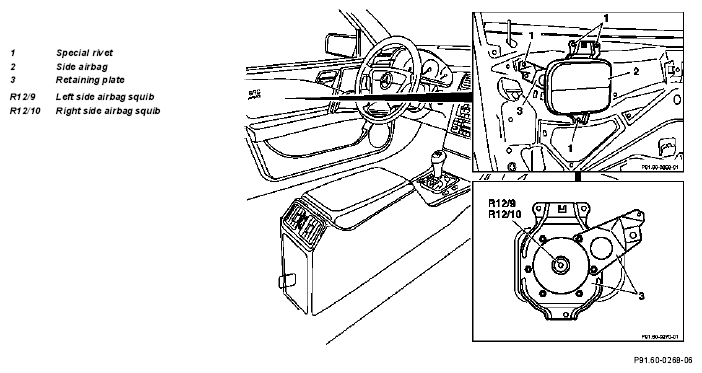

Fig 1: Identifying Driver And Passenger Side Airbags (Illustrated On Model 210)
G04632741
