Removing and installing inside rearview mirror - AR68.40-P-0001G

MODEL 170

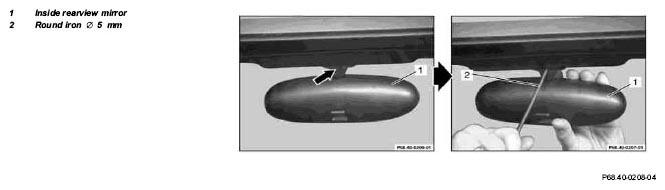

Fig 1: Identifying Inside Rearview Mirror Remove/Install Components

	Removal, installation
1		The mounting plate for the inside rearview mirror is glued to the windshield.
2	Plug in round iron (2) in hole (arrow) on mirror base	Use 5 mm dia. round iron or suitable mandrel ø.
3	Turn mirror base with round iron (2) approx. 90 degrees to left or right
4	Remove mirror
5	Install in opposite order
