Removing and installing garage door opener - AR68.05-P-2000G

MODEL 170 as of 1.2.00 with CODE (231a) Garage door opener

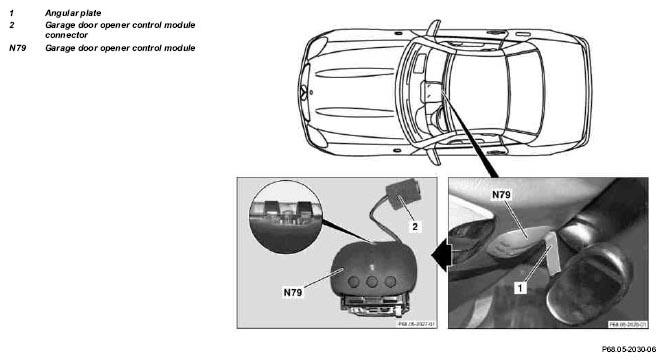

Fig 1: Identifying Garage Door Opener Remove/Install Components

	Removing
1	Insert angle plate (1) into release opening for garage door opener (N79)	See magnified section in figure at bottom left.
	Angular plate for removing garage door opener	Model 170	WF58.50-P-6805-01A
2	Unclip garage door opener (N79) with tool (1)	Push toward rear of vehicle and pull downward.
3	Disconnect garage door opener control module connector (2)
	Installing
4	Connect garage door opener control module connector (2)
5	Clip in garage door opener (N79)
