Removing and installing exterior rearview mirror adjustment switch - AR88.79-P-3470G
MODEL 170
| Removal, installation | |||
| 1 | Remove center console (1) | AR68.20-P-2010G | |

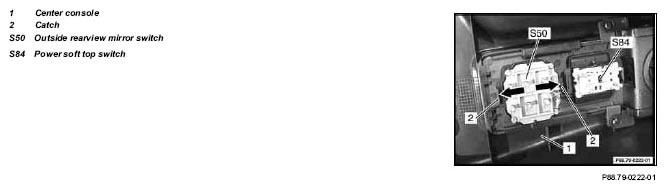

| 2 | Press catch (2) in direction of arrow with long wedge | Figure | |
| 3 | Press outside rearview mirror switch (S50) downward out of center console (1) | ||
| 4 | Reinstall in opposite order |
