Central locking (CL), location of pneumatic components - GF80.20-P-0005-04C

Model 170 USA ONLY , JAPAN ONLY

Model 170 as of 06/97

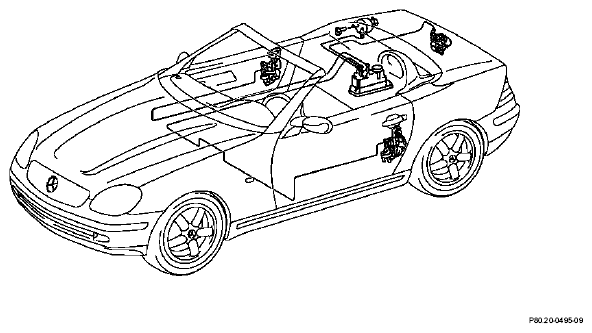

Fig 1: Identifying Central Locking (CL) Pneumatic Components Location (1 Of 2)
G04744299

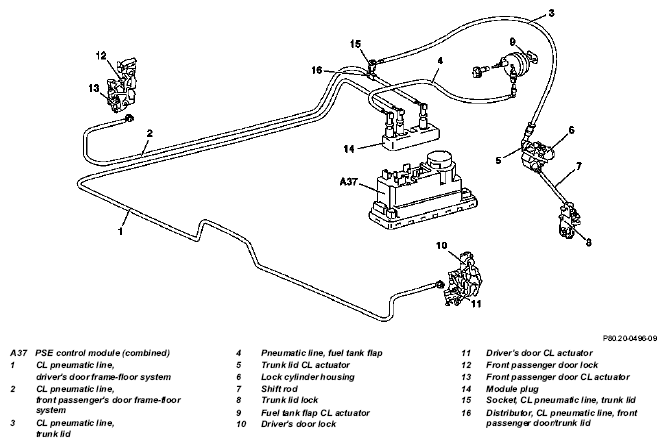

Fig 2: Identifying Central Locking (CL) Pneumatic Components Location (2 Of 2)
G04744300
