Central locking (CL), interlinkage of electric components - GF80.20-P-0005-03C

Model 170 USA ONLYJAPAN ONLY

Model 170 as of 06/97

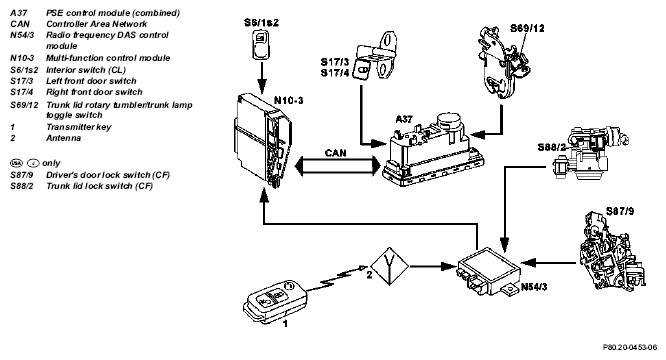

Fig 1: Identifying Central Locking (CL) Interlinkage Of Electric Components
G04744298
