Alarm signal siren, location - GF80.50-P-4110-01B

Model 170

The alarm signal siren with additional battery (H3/1) is located in the middle of the water drain below a cover plate.

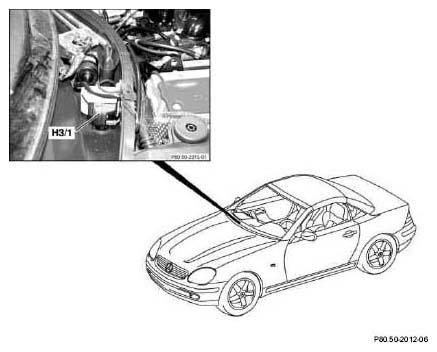

Fig 1: Identifying Alarm Signal Siren Location
G04744330
