Removing and installing center air nozzle - AR68.10-P-1150G
MODEL 170
| Removal, installation | |||
| 1 | Remove cover on center console | AR68.20-P-2350G | |

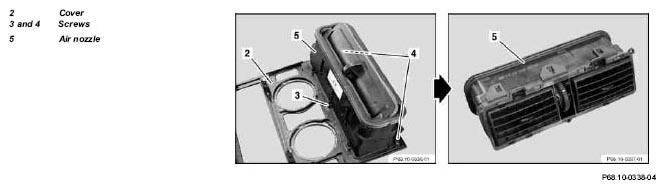

| 2 | Unscrew screws (3 and 4) | ||
| 3 | Unclip air nozzle (5) (4 catch lugs) | ||
| 4 | Remove air nozzle (5) from cover (2) | ||
| 5 | Reinstall in opposite order |
