Crossing out vehicle identification no. and stamping in new number in spare space - AR60.00-P-0800-05G

Fig 1: Identifying Number Punch Guide (170 589 01 63 00)

Fig 2: Identifying Set Of Steel Stamping Numbers (140 589 26 63 00)

Fig 3: Identifying Set Of Steel Stamping Letters (140 589 26 63 05)

1. Cross out incorrect vehicle identification number with "X" stamp and stamp new vehicle identification number into the spare space below as follows.
2. Start with "Mercedes star" punch in window plate at bottom left (arrow)



   The tip of the Mercedes star should point upward in relation to the lettering.

3. Then position the "W" stamp with the left edge flush with the first mark in the window plate and stamp.
4. Move ahead one mark on the window plate with each subsequent stamp until the complete vehicle identification number and final Mercedes star have been stamped in.

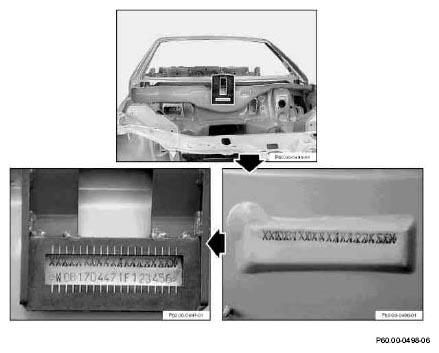

   Fig 4: Crossing Out Vehicle Identification No. And Stamping In New Number In Spare Space
