Removing and installing front power window switches - AR72.29-P-0100G

MODEL 170

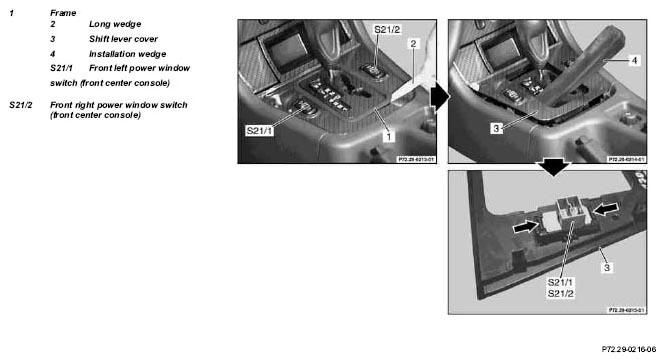

Fig 1: Identifying Front Power Window Switches Remove/Install Components

	Removal, installation
1	Unclip frame (1) with long wedge (2) and remove upward		Figure
2	Unclip shift lever cover (3) with installation wedge (4)		Figure
3	Disconnect electrical connectors from power window switches
4	Press in catches (arrows)
5	Press power window switches (S21/1, S21/2) down out of shift lever cover (3)	Installation  : Ensure that power window switches are installed in proper direction
6	Reinstall in opposite order

Fig 2: Identifying Installation Wedge (110 589 03 59 00)

Fig 3: Identifying Long Wedge (115 589 03 59 00)
