Connecting diagram for socket box, radio frequency locking/remote central locking (RFL/RCL) control module - AD80.35-P-2000-05A

Connecting diagram for socket box

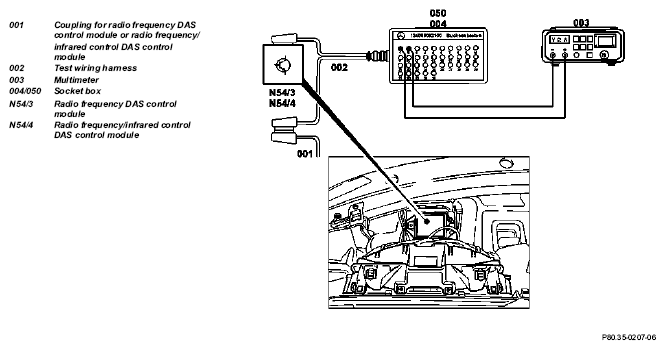

Fig 1: Connecting Diagram For Socket Box, Radio Frequency Locking/Remote Central Locking (RFL/RCL) Control Module

• Location of radio frequency DAS control module (N54/3) or radio frequency/infrared control DAS control module (N54/4) behind instrument cluster (model 170 shown)
• After installing the instrument cluster and steering wheel, erase the fault memory for the airbag system using the Hand-Held Tester.
