Removing and installing antenna for global positioning system (GPS) on vehicles with APS - AR82.61-P-7474I

MODEL 170 Antenna on soft top compartment

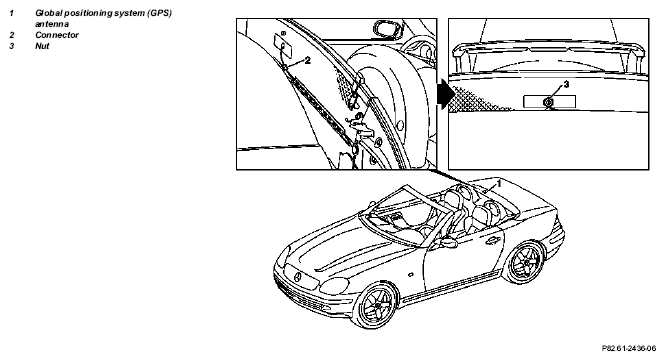

Fig 1: Identifying (GPS) Antenna On Vehicles With APS Remove/Install Components

	Removal, installation
1	Extend roof mechanism until rear shelf is in perpendicular position
2	Disconnect global positioning system (GPS) antenna (2)	Located below adhesive felt
3	Unscrew nut (3) and remove global positioning system (GPS) antenna (1)
4	Install in opposite order
