Removing and installing antenna for global positioning system (GPS) on vehicles with APS - AR82.61-P-7474H
MODEL 170 up to 30.6.98 with CODE (810) Sound system
MODEL 170 as of 1.7.99 CD changer can be connected with D2B fiber optic cable

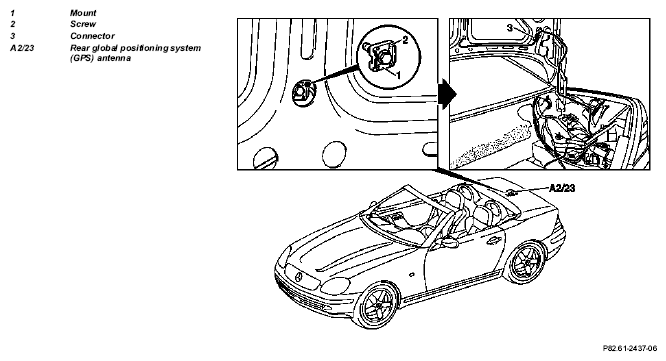

Fig 1: Identifying (GPS) Antenna On Vehicles With APS Remove/Install Components - Model 170 With Code (810)
| Removal, installation | |||
| 1 | Remove inner paneling on trunk lid | ||
| 2 | Expose antenna lid | ||
| 3 | Disconnect connector (3) | ||
| 4 | Unscrew screw (2) and remove together with mount (1) | ||
| 5 | Disconnect felt strips (arrows) and, if applicable, cable straps | ||
| 6 | Disconnect global positioning system (A2/23) antenna | ||
| 7 | Install in opposite order |
