Removing and installing APS radio and navigation operating unit - AR82.61-P-7412GI

MODEL 170 with CODE (353) Audio 30 APS

Using Model 463 as an example

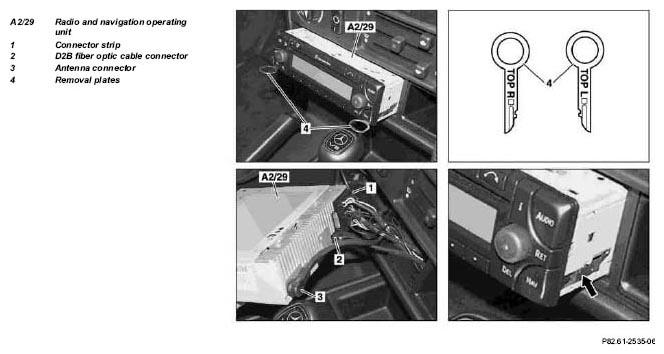

Fig 1: Identifying APS Radio And Navigation Operating Unit Remove/Install Components

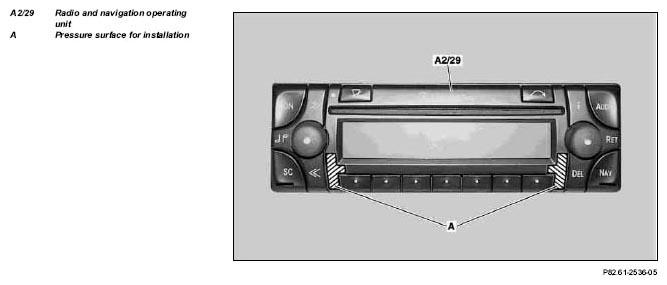

Fig 2: Identifying Radio And Navigation Operating Unit And Pressure Surface For Installation

	Remove/install
1	Pull out radio and navigation operating unit (A2/29)		*WH58.30-Z-1005-19A
		For this purpose slide in removal plates (4) ↓
		Press retaining springs (arrow) back on removed radio (A2) and pull out removal plates (4)
		Installation  : Press radio and navigation operating unit in only at points marked with (A) with max. 100 N.
2	Disconnect electrical connectors (to 3) from rear of radio and navigation operating unit (A2/29)	Do not kink or stretch D2B fiber optic cable (2)
3	Install in the reverse order
4	Encode radio	When replacing radio and navigation operating unit (code 353) reconfigurate unit and activate radio code. If reinstalling the same unit, it is only necessary to activate the radio code. see: ↓
		Code radio.	AR82.60-P-7502-01B
		Configure radio and navigation operating unit (APS)	AR82.61-P-7412-02GI
		Voice output is loaded automatically within 20 minutes after the radio and navigation operating unit is connected.

Commercially available tools

Number	Designation
WH58.30-Z-1005-19A	Radio removal plate	000 833 0361
