Removing and installing seat occupied recognition sensor - AR91.60-P-0720G

MODEL 170

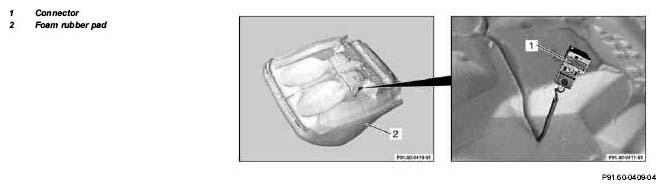

Fig 1: Identifying Seat Occupied Recognition Sensor Remove/Install Components

	Removal, installation
	Important instructions for performing repair, body work and welding on vehicles with airbags or emergency tensioning retractors	Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904	AH91.00-P-0002-01B
1	Remove ignition key
2	Disconnect connector (1) for front passenger seat occupied recognition sensor below passenger seat
3	Remove cover of front seat cushion		AR91.18-P-1800G
4	Remove foam rubber pad (2)	The seat cushion occupied recognition sensor is integrated into the foam rubber pad (2)
5	Reinstall in opposite order
