Removing and installing front seat backrest motor - AR91.29-P-1431G

MODEL 170 with CODE (560) Left and right electrically adjustable front seats

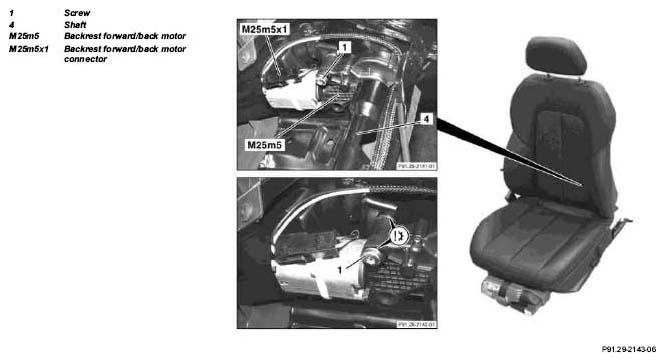

Fig 1: Identifying Front Seat Backrest Motor Remove/Install Components

	Removal, installation
1	Remove cover on front seat backrest	Only until motor (M25m5) on left side of backrest is exposed.	AR91.18-P-1820G
2	Disconnect backrest motor connector (M25m5x1)
3	Remove snap ring on shaft and remove shaft from backrest frame
4	Unscrew screw (1)	Installation:  Ensure that rubber mount is seated properly.
5	Remove backrest forward/back motor (M25m5)
6	Install in the reverse order
N	Carry out operational check
