Supplemental restraint system (SRS), function - GF91.60-P-0002A
>>
Supplemental restraint system (SRS), networking of components - GF91.60-P-0002-02A
Supplemental restraint system (SRS), networking of components - GF91.60-P-0002-02A
Shown model 170

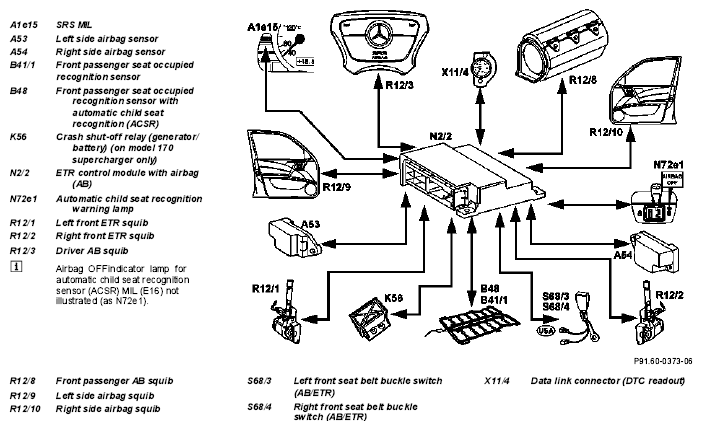

Fig 1: Identifying Supplemental Restraint System (SRS), Networking Of Components (Shown Model 170)
