Telephone (GSM), function description - GF82.70-P-0003-02D

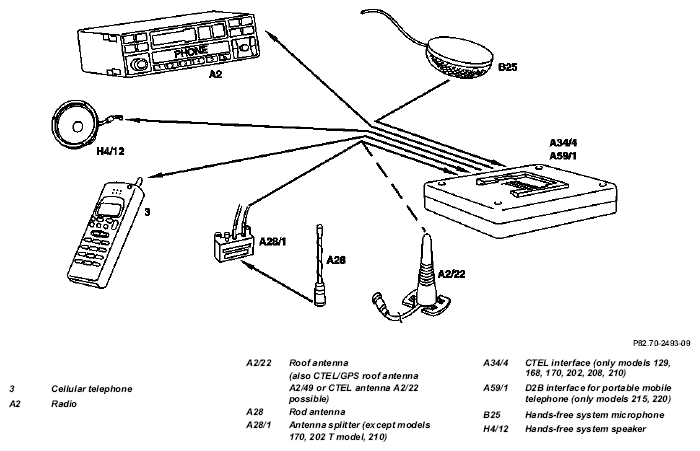

Function schematic for permanently installed telephone

Fig 1: Identifying Telephone (GSM), Function Description (1 Of 2)

Function schematic for "cellular telephone"

Fig 2: Identifying Telephone (GSM), Function Description (2 Of 2)
