Dismantling |
|
|
| 1 |
Remove jacket tube |
|
AR46.10-P-0400A |
| 2 |

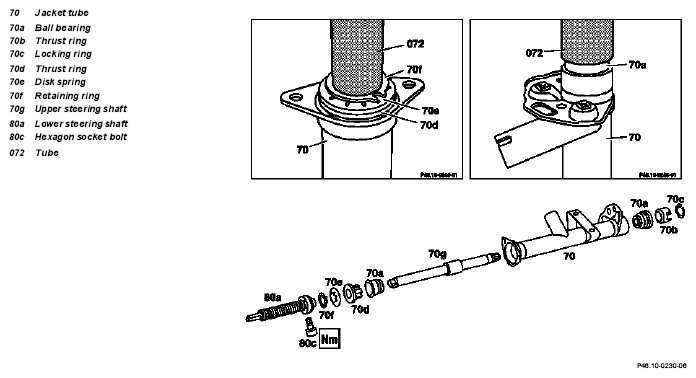

Detach bolt (80c), remove lower steering shaft (80a) |
Check lateral runout of lower steering shaft (80a) (visual inspection). |
|
| 3 |
Remove retaining ring (70f), disk spring (70e) and thrust ring (70d) |
|
|
| 4 |
Push steering shaft (70g) out slightly, remove locking ring (70c) and thrust ring (70b) |
|
|
| 5 |
Press ball bearing (70a) out of the jacket tube using the steering shaft (70g) |
|
|
 |
Assembling |
|
|
| 6 |
Using a suitable tube (072), press the new ball bearing (70a) in up to the stop in the jacket tube |
|
|
| 7 |
Slide steering shaft in (70g) and press second ball bearing in |
|
|
| 8 |
Push thrust ring (70b) and locking ring (70c) together onto the steering shaft |
Ensure that the locking ring locks in position correctly in the groove of the upper steering shaft.
Two locking rings are fitted on vehicles with contact spirals. |
|
| 9 |
Slide on thrust ring (70d) and disk spring (70e) |
|
|
| 10 |
Mount retaining ring (70f) on the steering shaft (70g) and, using a suitable tube (072), push on until the disk spring (70e) is fully preloaded. |
The disk spring must be preloaded fully; preload fully using the lower steering shaft, if necessary. |
|
| 11 |
Attach lower steering shaft (80a) to upper steering shaft |
|
AR46.10-P-0500-01E |
