Removing, installing transponder coil - AR80.35-P-4515G

MODEL 170 as of 1.6.97

MODEL 170 with CODE (491) USA version with CODE (498) Japanese version

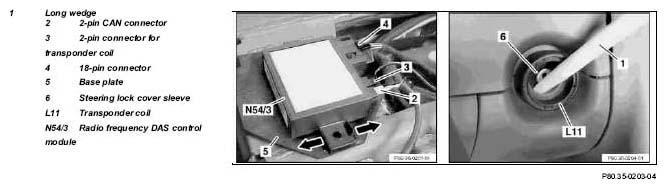

Fig 1: Identifying Transponder Coil Remove/Install Components

	Removal, installation
1	Remove upper section of instrument panel		AR68.10-P-1020G
2	Disconnect 2-pin connector for transponder coil (3) from radio frequency DAS control module (N54/3)
3	Press transponder coil (L11) off of steering lock cover sleeve (6) with long wedge (5)	Insert long wedge (5) directly between steering lock cover sleeve (6) and transponder coil (L11)	Figure
4	Reinstall in opposite order

Fig 2: Identifying Long Wedge (115 589 03 59 00)
