Removing and installing folding key in remote control key - AR80.30-P-4220G

MODEL 170

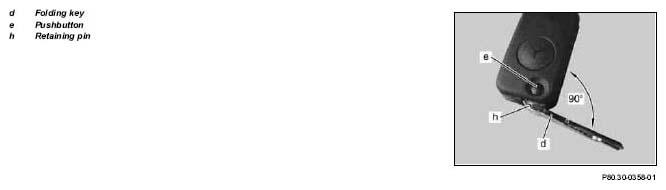

Fig 1: Identifying Folding Key In Remote Control Key Remove/Install Components

	Removal, installation
1	Press pushbutton (e)
2	Swing folding key (d) out approx. 90°
3	Press out retaining pin (h) with 1.5 mm dia. punch
4	Pull off folding key (d)
5	Reinstall in opposite order
