Removing and installing closing confirmation relay - AR80.30-P-4520G

MODEL 170

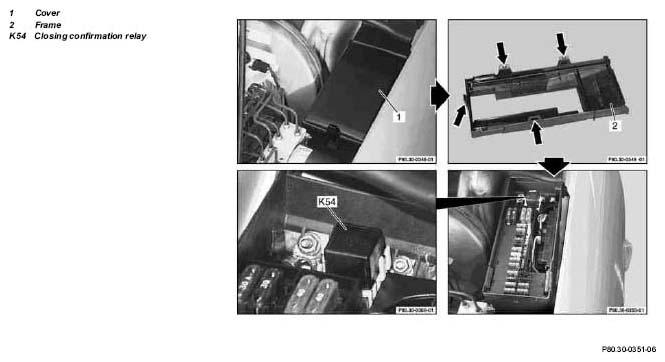

Fig 1: Identifying Closing Confirmation Relay Remove/Install Components

	Removal, installation
1	Remove cover (1) from fuse box
2	Remove frame (2) by unhooking catch strap (arrows) with puller hooks		Fig 2
3	Pull off closing confirmation relay (K54)
4	Reinstall in opposite order

Fig 2: Identifying Pulling Hooks (140 589 02 33 00)
