Removing and installing CL actuator in tank flap - AR80.20-P-2300G
MODEL 170
| Removal, installation | |||

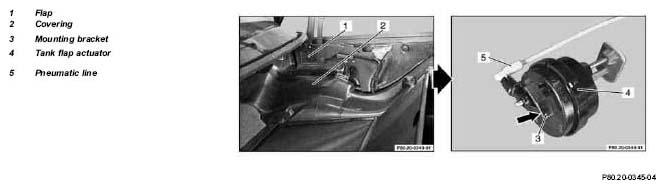

| 1 | Open flap (1) in covering (2) on right side of trunk | ||
| 2 | Press mounting bracket (3) (arrow) | ||
| 3 | Pull tank flap actuator (4) off of holder | ||
| 4 | Remove tank flap actuator (4) | ||
| 5 | Pry pneumatic line (5) off with open end wrench (7 mm) | ||
| 6 | Check pneumatic function of tank flap actuator (4) | ||
| 7 | Reinstall in opposite order |
