Removing and installing vehicle interface (handy) - AR82.70-P-8920B

MODEL 170 with CODE (313) D-network "Handy" telephone

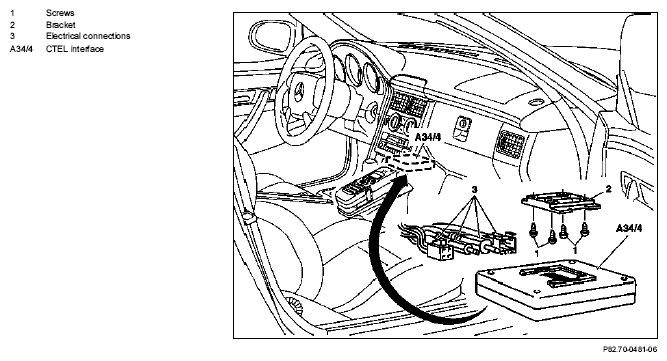

Fig 1: Identifying Vehicle Interface (Handy) Remove/Install Components

	Removing, installing
1	Connect quiescent current preservation unit		*WH58.30-Z-1012-09A
2	Disconnect ground cable at battery	To protect against inadvertent contact of disconnected ground cable with ground (battery) W10, insulate cable shoe of ground cable	AR54.10-P-0003A
3	Remove cover on center console		AR68.20-P-2350G
4	Push CTEL interface (A34/4) in direction of travel
5	Unplug connecting cables (3)
6	Install in reverse order

Commercially available tools

Number	Designation
WH58.30-Z-1012-09A	Quiescent current retention unit
