Removing and installing taillamp - AR82.10-P-4905EC

MODEL 170

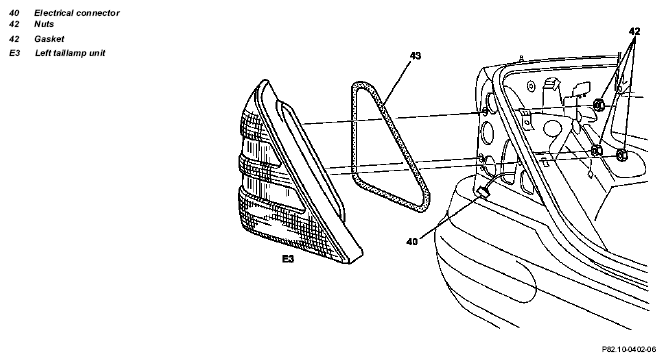

Fig 1: Identifying Taillamp Remove/Install Components

	Removal, installation
1	Remove first aid kit on left or flap in wheelhouse panel on right
2	Unscrew nuts (42)
3	Disconnect electrical connector (40)
4	Remove left taillamp unit (E3)	Installation  : Check gasket (43) for damage, replace, if necessary. Ensure that gasket (43) is seated correctly
5	Reinstall in opposite order
