Removing and installing speakers in rear wall (passenger compartment) - AR82.62-P-7838C
MODEL 170 (except 170.435)

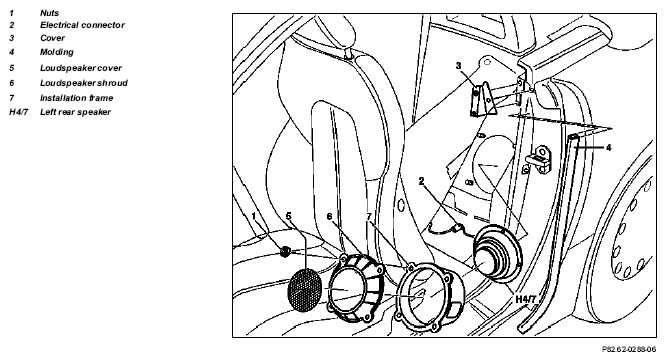

| Removal, installation | |||
| 1 | Move seats and seat backrests all the way to the front position | ||
| 2 | Remove door sill molding | ||
| 3 | Remove top covering (3) at entry | ||
| 4 | Pull off entrance molding (4) | ||
| 5 | Remove loudspeaker cover (5) | ||
| 6 | Fold floor covering to side | ||
| 7 | Unscrew nuts (1) | ||
| 8 | Unclip loudspeaker shroud (6) from installation frame (7) | ||
| 9 | Disconnect electrical connector (2) | ||
| 10 | Remove installation frame (7) together with left rear speaker (H4/7) | ||
| 11 | Remove left rear speaker (H4/7) from installation frame (7) | ||
| 12 | Reinstall in opposite order | ||
| 13 | Check for proper function |
