Removing and installing license plate lamps - AR82.10-P-5161EC

MODEL 170

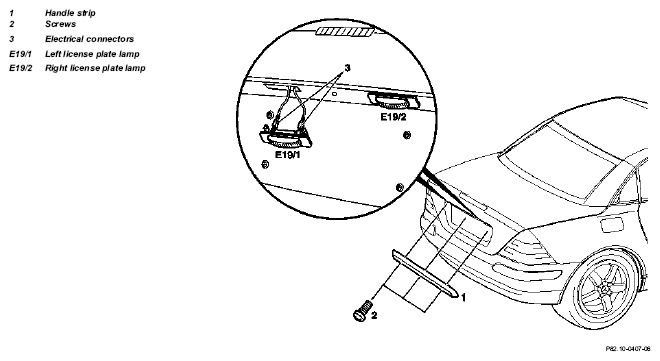

Fig 1: Identifying License Plate Lamps Remove/Install Components

	Removal, installation
1	Unscrew screws (2) and remove handle strip (1) from trunk lid
2	Unclip license plate lamps (E19/1 and E19/2)	To unclip insert a flat object, e.g. plastic wedge, between license plate lamp and trunk lid
		Installation  : Check condition of gasket, replace if necessary, ensure that gasket is properly seated
3	Disconnect electrical connectors (3)
4	Reinstall in opposite order
