Removing and installing handset in stowage compartment armrest or stowage compartment - AR82.70-P-8915D
MODEL 170 up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B)
| Removing, installing | |||
| 1 | Open stowage compartment | ||

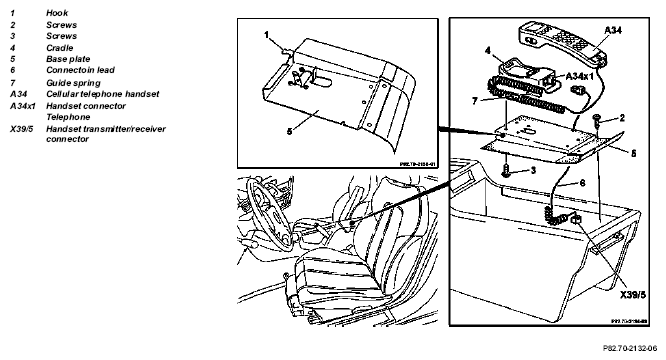

| 2 | Disconnect connector for telephone handset (A34x1) and unhook from guide spring (7). Remove telephone handset (A34) | ||
| 3 | Unscrew screws (2) | ||
| 4 | Lift base plate (5) at rear and pull toward rear | ||
| 5 | Unscrew screws (3) | ||
| 6 | Remove cradle (4) | ||
| 7 | Disconnect handset transmitter/receiver connector (X39/5) | ||
| 8 | Pull connection lead (6) out of base plate (5). | ||
| 9 | Install in the reverse order |
