Removing and installing hands-free system speaker (passenger footwell) - AR82.62-P-7875C
MODEL 170
| Removal, installation | |||
| 1 | Remove right-hand side entrance strip | ||
| 2 | Remove molding | ||

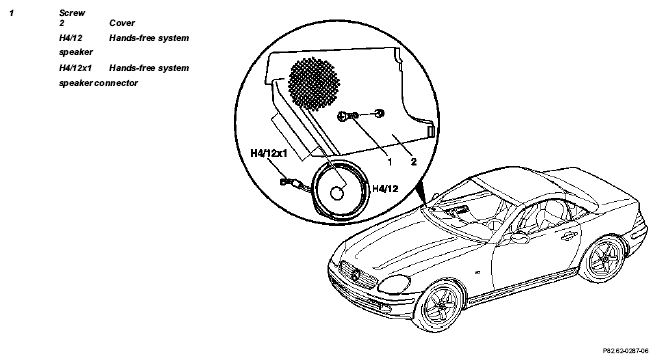

| 3 | Unscrew screw (1) and remove cover (2) | ||
| 4 | Remove cover (2) together with hands-free system speaker (H4/12) | ||
| 5 | Disconnect hand-free system speaker connector (H4/12x1) | ||
| 6 | Remove hands-free system speaker (H4/12) from cover (2) | ||
| 7 | Reinstall in opposite order | ||
| 8 | Check for proper function |
