Removing and installing radio - AR82.60-P-7502EB: Notes

MODEL 129, 170, 202, 208, 210 with CODE (750a) MB radio Audio 30 RDS with CODE (753) MB radio Audio 30 RDS with CODE (756a) MB radio Audio 10 RDS with CD compartment

MODEL 461 with CODE (EF1) Audio 10 RDS with CODE (EF2) Audio 10 RDS with CD slot with CODE (EF3) Audio 30 RDS

Illustrated on model 202

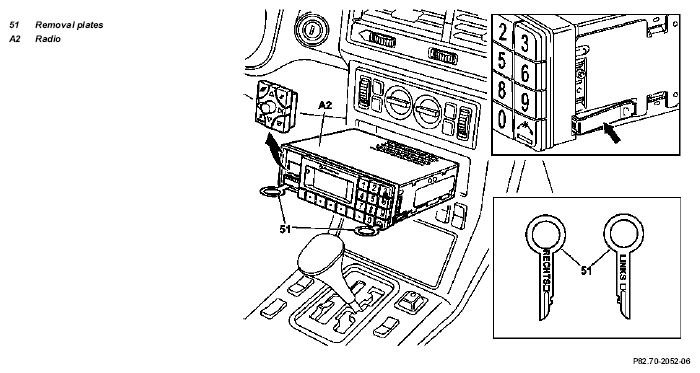

Fig 1: Identifying Radio And Removal Plates

	Removal, installation
1	Disconnect ground lead from battery	On model 210 insulate ground lead terminal to protect against unintentional contact between disconnected ground lead and ground point W10	AR54.10-P-0003A
2	Pull out radio (A2)	For this purpose insert removal plates (51): ↓ After removing press retaining springs (arrow) back on radio and pull out removal plates (51)
3.1	Disconnect electrical connectors
3.2	Disconnect fiber optic cable D2B	Do not kink or stretch fiber optic cable D2B
4	Install in opposite order
5	Code radio		AR82.60-P-7502-01M
