Retrofitting global positioning system (GPS) antenna - AN82.61-P-7474-04D

Model 170

1. Mask trunk lid over large surface from outside with masking tape or foil.
2. Drill center hole (arrow) in center of trunk lid on inside as shown in figure.
3. Expand antenna hole to 18 mm dia.
4. Position antenna (A2/49) in trunk lid, align with longitudinal axis of vehicle and press lightly onto trunk lid.

   This marks the hole pattern for the front locating pin on the antenna on the masked surface.

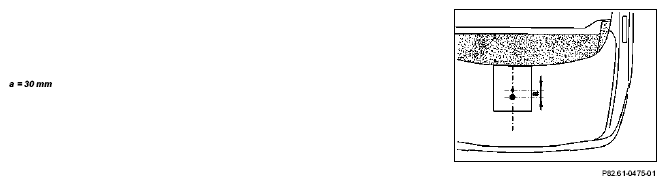

   Fig 1: Identifying Antenna Hole


   Fig 2: Identifying Antenna Position


5. Mark hole for locating pin and drill with 6 mm dia. bit.

   When expanding drilled holes do not damage paint or trunk lid. Do not remove drilling chips with magnet. Coat bare areas on body next to holes with primer.

   Fig 3: Identifying Antenna Hole Dimension


6. Remove backing foil on antenna base.
7. Insert antenna and align.
8. Screw antenna down tight from inside.
9. Tie back CTEL antenna lead in trunk lid.
   Fig 4: Identifying Antenna Screw


10. Connect antenna extension wire (11) to antenna.
11. Fasten connector (12) in trunk lid with felt strips.
12. Route wire (11) along existing wires to navigation processor and connect.
13. Fasten wire (11) with cable straps (arrow).
    Fig 5: Identifying Wire Route
