Removing and installing wiper arm - AR82.30-P-6100G: Notes

MODEL 170

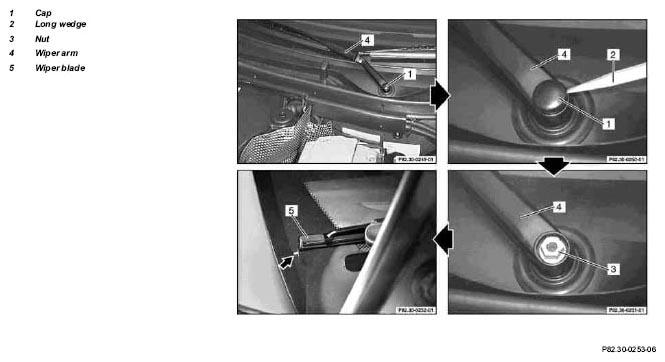

Fig 1: Identifying Wiper Arm Remove/Install Components

	Removal, installation
	Injury hazard!  Windshield wiper mechanism can pinch, crush or, in extreme cases, even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AH82.30-Z-6100-01Z
1	Remove ignition key
2	Open engine hood, move to upright position		AR88.40-P-1000G
3	Pry off cap (1) with long wedge (2)
4	Unscrew nut (3, 13 mm)
5	Remove wiper arm (4)	Installation  : Ensure that wiper blade (5) makes contact directly on mark (arrow) on windshield
6	Reinstall in opposite order

Fig 2: Identifying Long Wedge (115 589 03 59 00)
