Radio frequency locking/remote central locking (RFL/RCL), location of components - GF80.30-P-0005-01C

Model 170 as of 1.6.97

Model 170 USA ONLYJAPAN ONLY

Model 170 with engine control module (HFM-SFI)

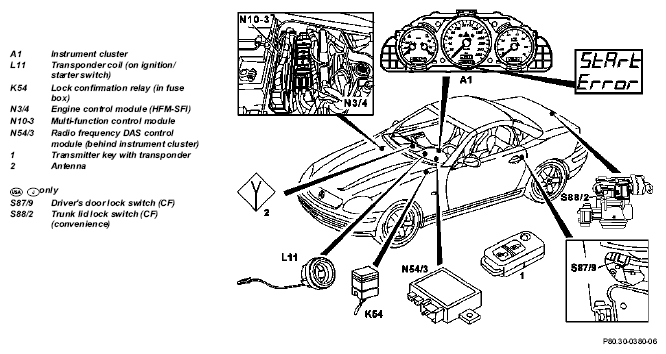

Fig 1: Identifying Radio Frequency Locking/Remote Central Locking (RFL/RCL) Components Location
G04744307
