Removing and installing combination switch - AR54.25-P-2800EA

MODEL 170, 202, 208, 210

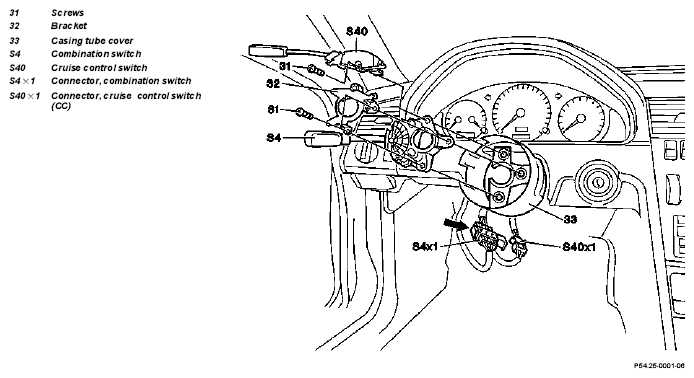

Fig 1: Identifying Combination Switch Components

	Removal, installation
1	Disconnect ground cable at the battery	On model 210 insulate terminal on ground cable to prevent unintentional contact between disconnected ground cable and ground W10.	AR54.10-P-0003A
2	Remove steering wheel	Caution when handling airbag unit. Improper handling may cause damage to the airbag unit	AR46.10-P-0100B
3	Remove contact spiral		AR46.10-P-0200A
4.1	Remove cover below instrument panel (driver's side)	Model 170	AR68.10-P-1500G
		Model 202	AR68.10-P-1500E
		Model 210	AR68.10-P-1500F
4.2	Remove bottom section of instrument panel (driver's side)	Model 208	AR68.10-P-1505K
5	Unscrew screw (31)
6	Take out bracket (32)
7	Separate connector (S4x1)	Take connector out of fixture and push bar (arrow)
8	Separate connector (S40x1)	Cruise control (code 440a) Take connector out of fixture
9	Detach wiring
10.1	Take out casing tube cover (33) together with combination switch (S4)	without cruise control
10.2	Take out casing tube cover (33) with combination switch (S4) and cruise control switch (S40)	with cruise control (code 440a)
11.1	Take combination switch (S4) out of casing tube cover	without cruise control
11.2	Take combination switch (S4) and cruise control switch (S40) out of casing tube cover	with cruise control (code 440a)
12	Reinstall in opposite order
