Removing and installing bulbs in instrument cluster - AR54.30-P-6049EB: Notes

MODEL 170, 202.01 /02 /12 as of 1.9.95, 202.07 /08 /18, 208, 210

Model 170

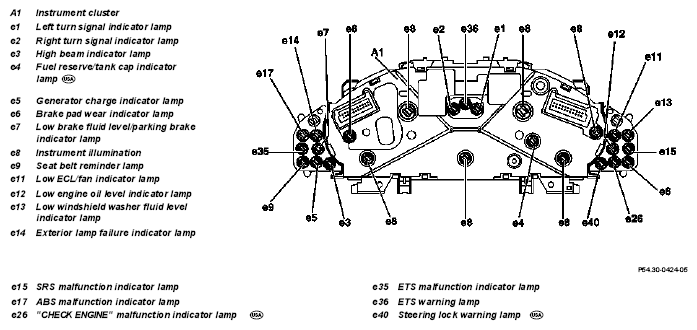

Fig 1: Identifying Bulbs And Instrument Cluster Components - Model 170

Model 202 sedans as of 1.9.95 and T-models, 208

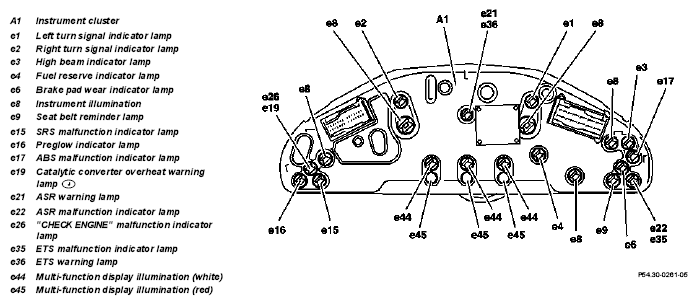

Fig 2: Identifying Bulbs And Instrument Cluster Components - Model 208

Model 210 without multi-function display

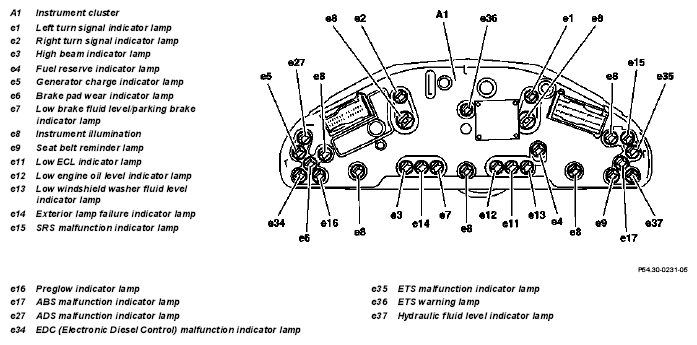

Fig 3: Identifying Bulbs And Instrument Cluster Components Without Multi-Function Display - Model 210

Model 210 with multi-function display

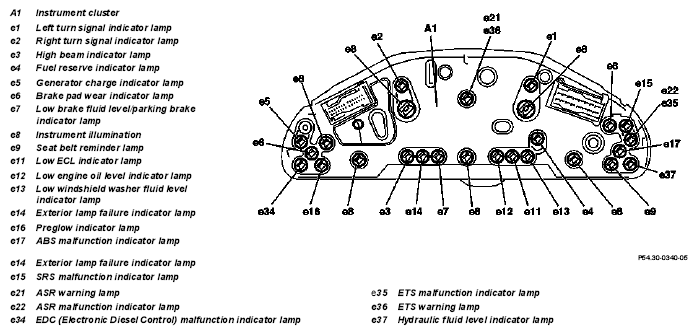

Fig 4: Identifying Bulbs And Instrument Cluster Components With Multi-Function Display - Model 210

	Removal, installation
1	Disconnect ground lead from battery	On model 210 insulate the ground lead with cable terminal to prevent unintentional contact between disconnected ground lead and ground point W10	AR54.10-P-0003A
2	Remove instrument cluster	Model 170	AR54.30-P-6015EC
		Models 202, 208, 210	AR54.30-P-6015EA
3	Remove bulbs	Installation: ↓	AR54.30-P-6049-01Z
		Reinstall bulbs	AR54.30-P-6049-02Z
4	Reinstall in opposite order

Fig 5: Identifying Bulb Tool (129 589 00 09 00)

Fig 6: Identifying Bulb Tool (129 589 01 09 00)
