Installing repair wiring harness - AR54.18-P-0900G: Notes

MODELS 170.### ## up to 280000

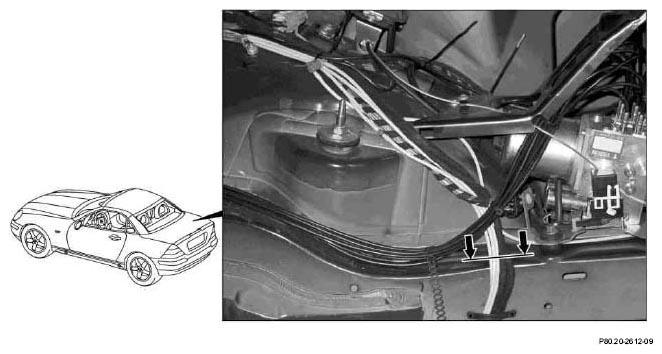

Fig 1: Identifying 4,6 And 18 Pin Plug ECM Wiring Harness, Anti-Theft Alarm System (ATA)

	Remove
1	Separate sheath of wiring harness for pneumatic control unit with combined functions (A37)	At the height of the longitudinal member.
2	Separate wiring harness for pneumatic control unit with combined functions (A37)	Above the longitudinal member (arrows).
3.1	Separate sheath of wiring harness for anti-theft alarm system (ATA) to pneumatic control unit with combined functions (A37)	Valid for anti-theft alarm system (ATA) code 551a
4.1	Separate wiring harness for anti-theft alarm system ATA to pneumatic control unit with combined functions (A37)	Valid for anti-theft alarm system (ATA) code 551a
5	Separate pneumatic lines	Above the longitudinal member (arrows).
	Install
6	Prepare wiring harness from package contents		AR54.18-P-0900-01G
7	Connect repair wiring harness with original wiring harness by means of solder connector		AR00.19-P-0100-09A
8	Extend pneumatic lines with rubber sleeve	Press pneumatic line at least 10 cm into the rubber sleeve so that the leaktightness of the repair point is guaranteed.
9	Wrap the repair point after the line repair	Using fabric tape.	AR00.19-P-0100-08C
