Retrofitting electronic vehicle log - AZ54.61-P-0001B: Notes
MODEL 170
with control module in glove compartment

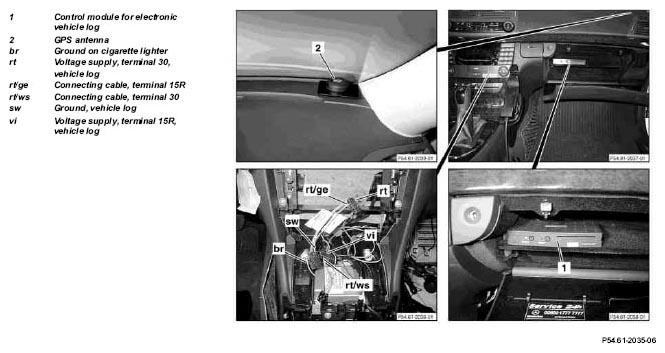

Shown on model 211
| Remove | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion from hydrogen gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury to eyes and skin suffering caustic burns from battery electrolyte or from contact with damaged lead acid batteries. | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3 | Remove radio or navigation control panel | ||
| 4 | Remove ashtray from front center console | ||
| 5 | Unclip paneling on right side of instrument panel | ||
| 6 | Unclip right-hand knee bolster | ||
| Install | |||
| 7 | Retrofit antenna for global positioning system (GPS) | AN82.61-P-7474-04TT | |
| 8 | Retrofit wiring harness for electronic vehicle log | AZ54.61-P-0001-02T | |
| 9 | Retrofitting control module for electronic vehicle log | AZ54.61-P-0001-03T | |
| 10 | Fit remaining parts to vehicle | ||
| 11 | Performing function check on electronic vehicle log | AZ54.61-P-0001-04T |
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 782 31 01 | Parts kit for electronic vehicle log | 1 |
