Instrument cluster (IC), location of components - GF54.30-P-0002-04C

Model 170

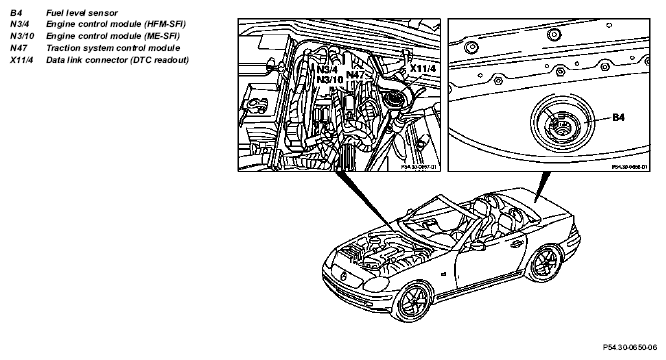

Fig 1: Identifying Instrument Cluster (IC) Components
G04743705

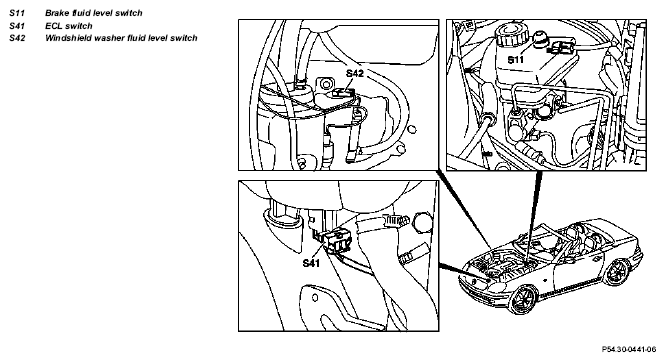

Fig 2: Identifying Brake Fluid Level Switch, ECL Switch And Windshield Washer Fluid Level Switch
G04743706
