Instrument cluster (IC) arrangement of components - GF54.30-P-0002-04O

Model 170

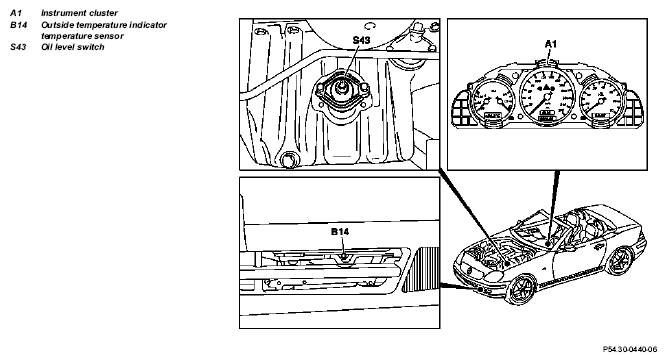

Fig 1: Identifying Oil Level Switch, Instrument Cluster And Outside Temperature Indicator Sensor

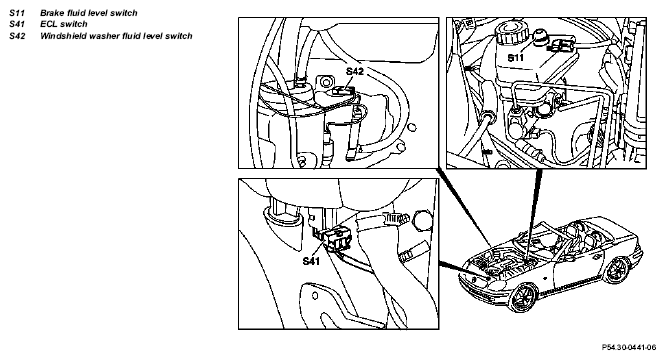

Fig 2: Identifying Brake Fluid Level Switch, ECL Switch And Windshield Washer Fluid Level Switch

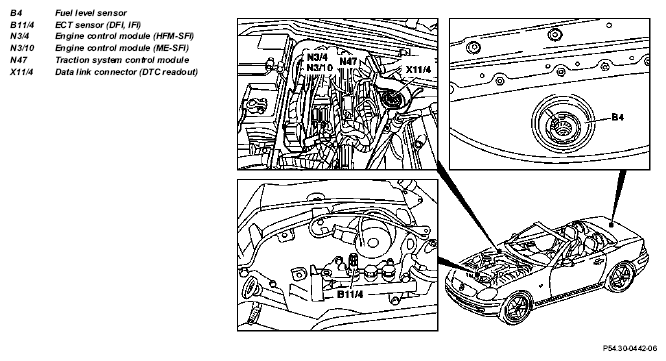

Fig 3: Identifying ECT Sensor (DFI, IFI), Traction System Control Module And Data Link Connector
