Checking and setting distance between rear axle spring strut and wheel house - AR32.31-P-0610-01A
TEST VALUES FOR REAR AXLE SPRING STRUT
| Number | Designation | Model 129 with electronic level control / ADS II | |||
|---|---|---|---|---|---|
| BE32.31-P-1001-01A | Distance between pressure hose bracket on spring strut tube and wheel house | at rebound | left | mm | 11...14 |
| right | mm | 11...14 | |||
| Fig. see | AR32.31-P-0610-01A | ||||
| BE32.31-P-1002-01A | Distance between pressure hose bracket on spring strut tube and wheel house | ready-to-drive (vehicle on pressure hose bracket on its wheels) | Left | mm | 16...19 |
| right | mm | 16...19 | |||
| Fig. see | AR32.31-P-0610-01A | ||||

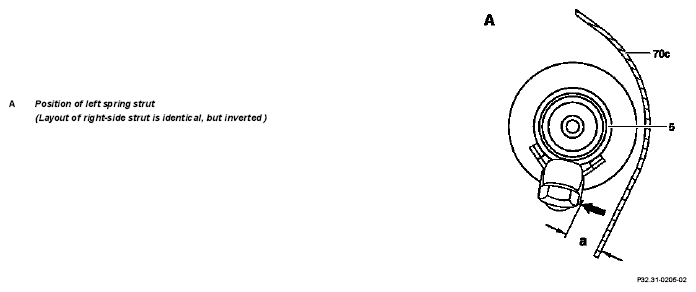

When installing the spring strut (5), check the distance "a" between the bracket of the pressure hose on the spring strut tube (arrow) and the wheel house (70c).
Positioning the spring strut
Only position the spring strut when the pressure hose is screw connection has been loosened.
Ensure that the sleeve on the spring strut is not twisted.
