Speed Sensitive Power Steering (SPS) Electrical Tests Program (Section 23)

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1994 Mercedes-Benz SL600, 1994 Mercedes-Benz SL500, 1994 Mercedes-Benz SL320, 1994 Mercedes-Benz E500, and 1994 Mercedes-Benz E420. However, it is still accessible from the selected car via links, so may be relevant.

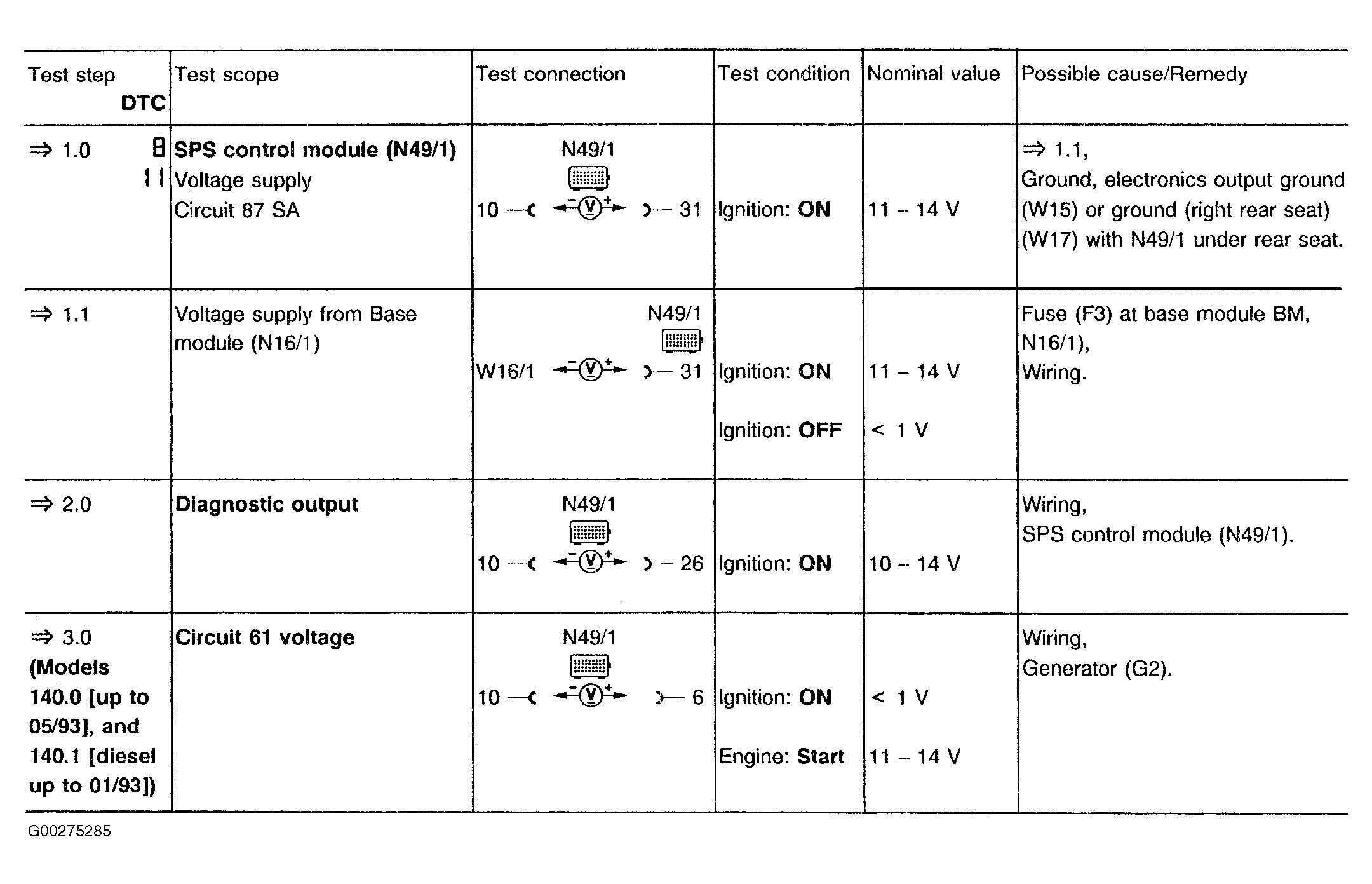

Fig 1: Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 1.0-3.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

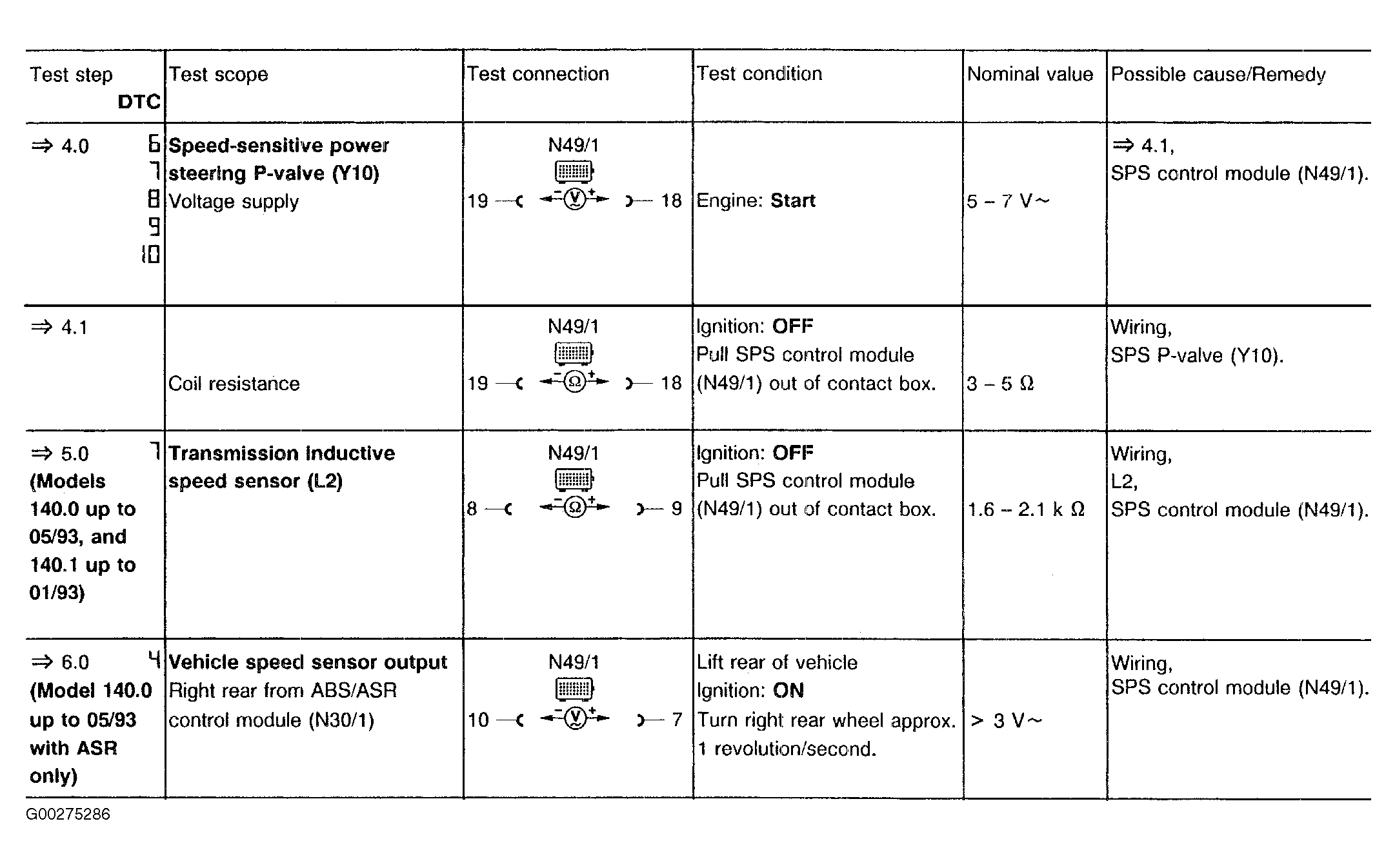

Fig 2: Speed Sensitive Power Steering (SPS) Electrical Tests Program (Steps 4.0-6.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

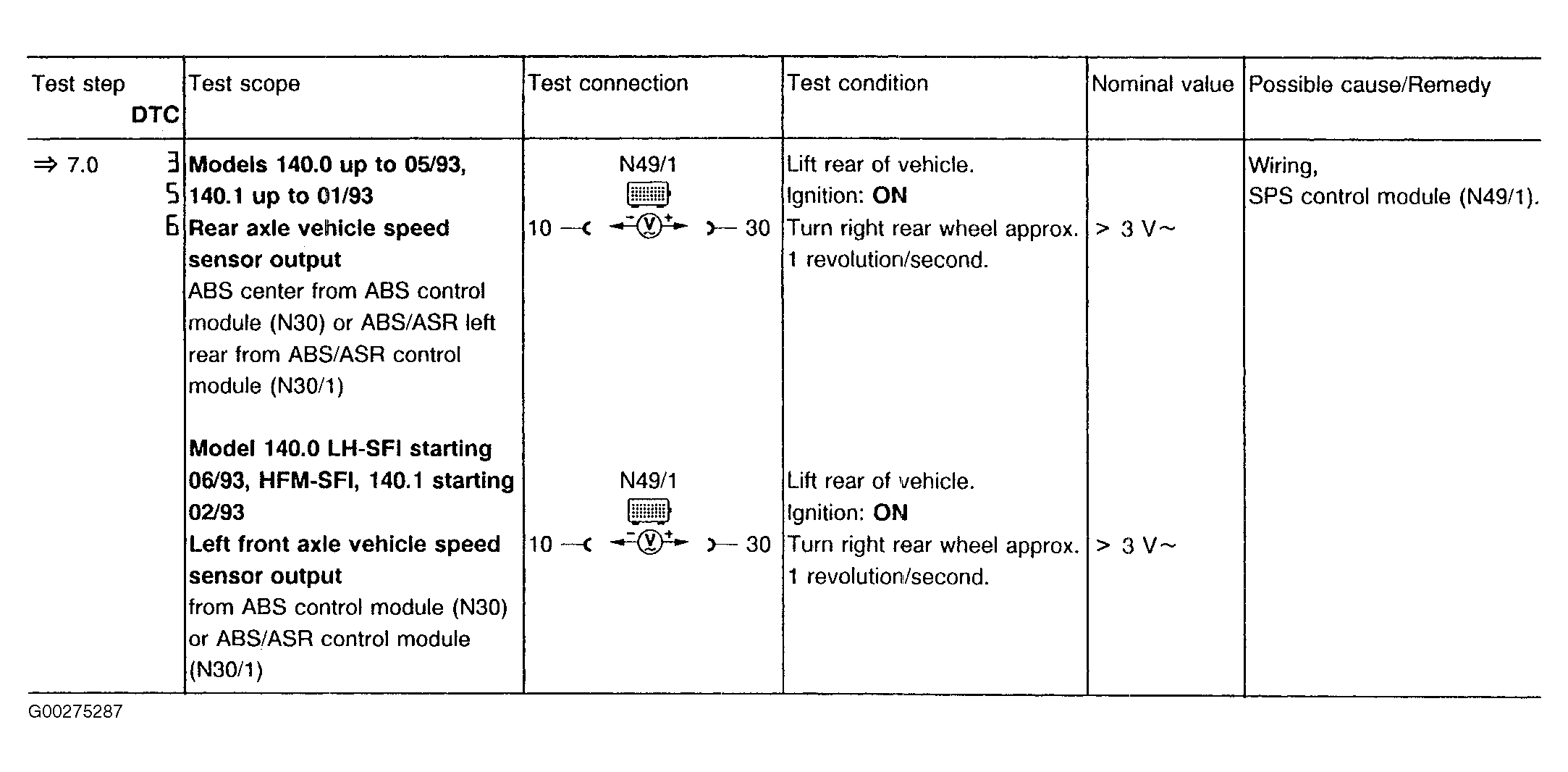

Fig 3: Speed Sensitive Power Steering (SPS) Electrical Tests Program (Step 7.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

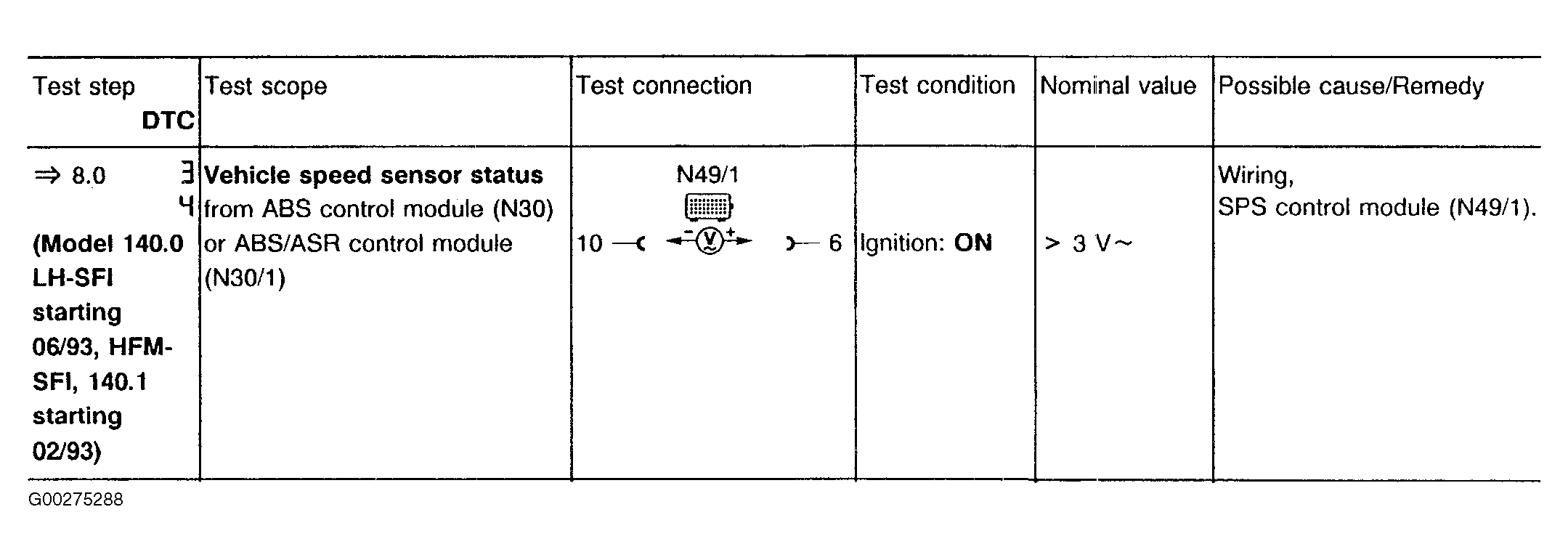

Fig 4: Speed Sensitive Power Steering (SPS) Electrical Tests Program (Step 8.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
