Diagnostic Trouble Code Definitions
WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1994 Mercedes-Benz SL600, 1994 Mercedes-Benz SL500, 1994 Mercedes-Benz SL320, 1994 Mercedes-Benz E500, and 1994 Mercedes-Benz E420. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS
.

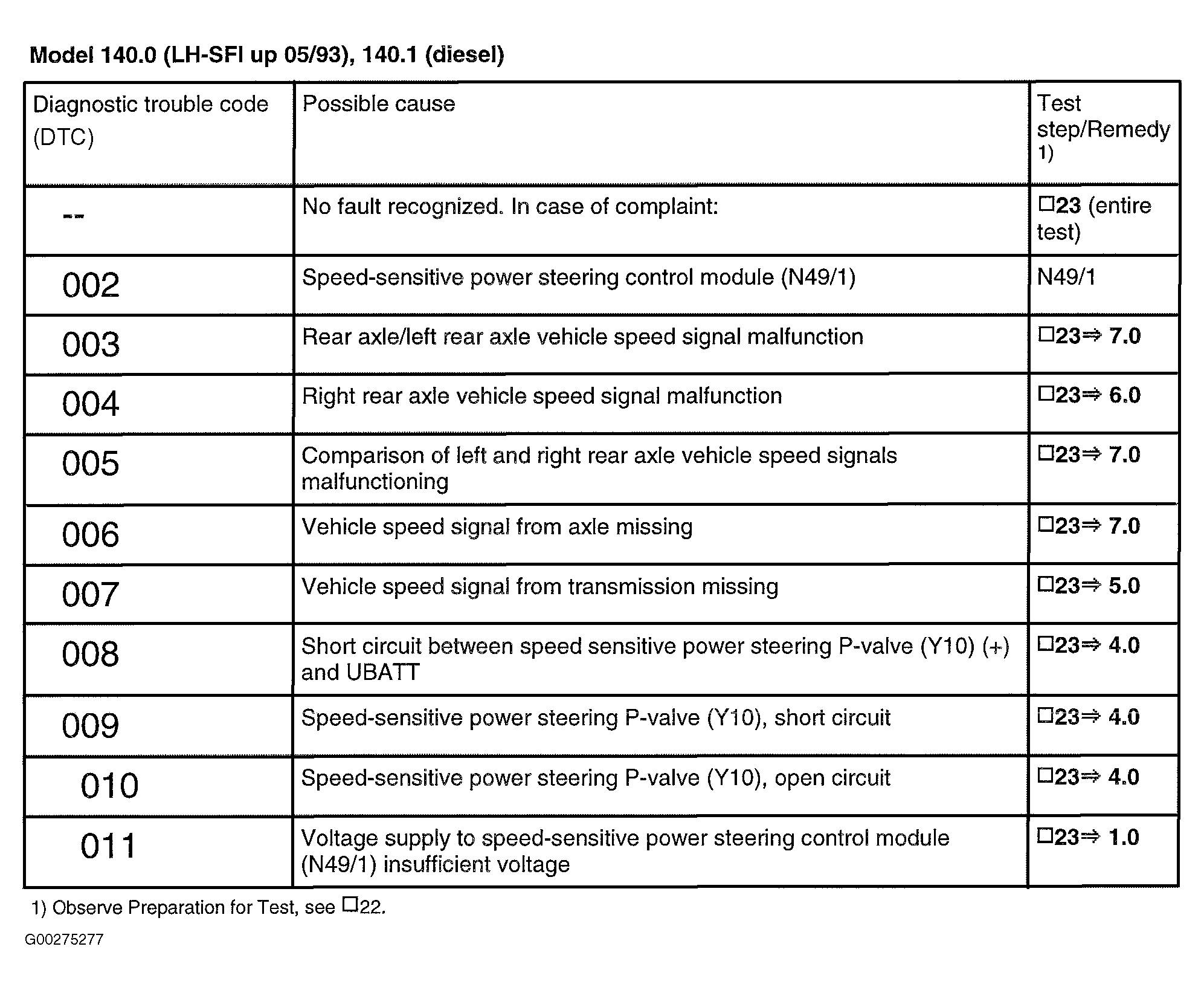

DIAGNOSTIC TROUBLE CODE DEFINITIONS (LH-SFI UP TO 5/93)
| DTC | Component Or System | See |
|---|---|---|
| - | No Fault Recognized | Fig 1 |
| 002 | SPS Control Module (N49/1) | Fig 1 |
| 003 | Left Rear Axle Vehicle Speed Signal Malfunction | Fig 1 |
| 004 | Right Rear Axle Vehicle Speed Signal Malfunction | Fig 1 |
| 005 | Comparison Of Left & Right Rear Axle Vehicle Speed Signals Malfunction | Fig 1 |
| 006 | Vehicle Speed Signal From Axle Missing | Fig 1 |
| 007 | Vehicle Speed Signal From Transmission Missing | Fig 1 |
| 008 | Short Circuit Between SPS "P" Valve (Y10) (+) & UBATT | Fig 1 |
| 009 | SPS "P" Valve (Y10) Short Circuit | Fig 1 |
| 010 | SPS "P" Valve (Y10) Open Circuit | Fig 1 |
| 011 | Voltage Supply To SPS Control Module (N49/1) Insufficient Voltage | Fig 1 |

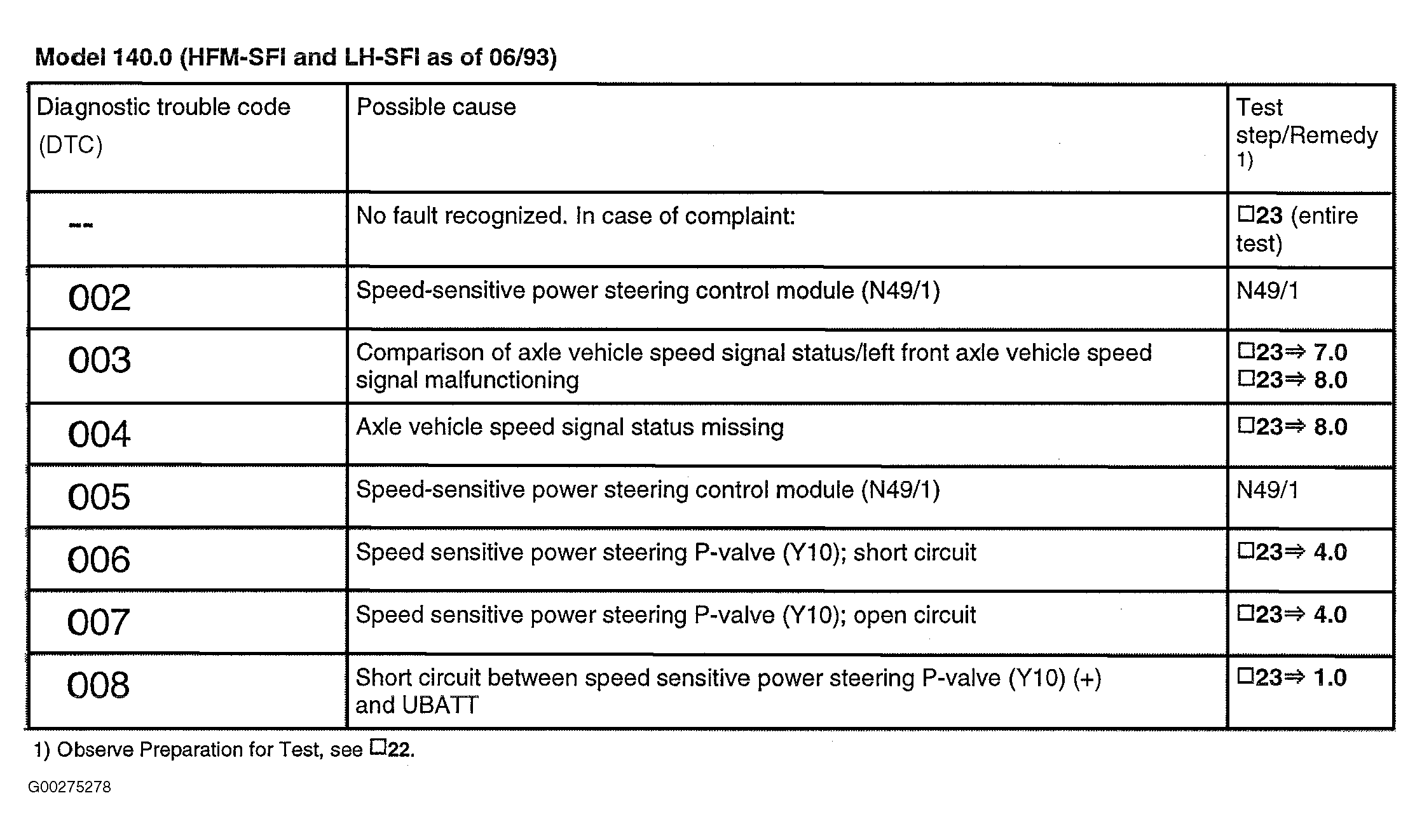

DIAGNOSTIC TROUBLE CODE DEFINITIONS (HFM-SFI & LH-SFI AS OF 6/93)
| DTC | Component Or System | See |
|---|---|---|
| - | No Fault Recognized | Fig 2 |
| 002 | SPS Control Module (N49/1) | Fig 2 |
| 003 | Comparison Of Axle Vehicle Speed Signal Status/Left Front Axle Vehicle Speed Signal Malfunction | Fig 2 |
| 004 | Axle Vehicle Speed Signal Status Missing | Fig 2 |
| 005 | SPS Control Module (N49/1) | Fig 2 |
| 006 | SPS "P" Valve (Y10) Short Circuit | Fig 2 |
| 007 | SPS "P" Valve (Y10) Open Circuit | Fig 2 |
| 008 | Short Circuit Between SPS "P" Valve (Y10) (+) & UBATT | Fig 2 |
