Design & Function Of Inductive Road Speed Sensor

WARNING: This page does not describe the selected car, but rather 24 other vehicles, including the 1994 Mercedes-Benz SL600, 1994 Mercedes-Benz SL500, 1994 Mercedes-Benz SL320, 1994 Mercedes-Benz E500, and 1994 Mercedes-Benz E420. However, it is still accessible from the selected car via links, so may be relevant.

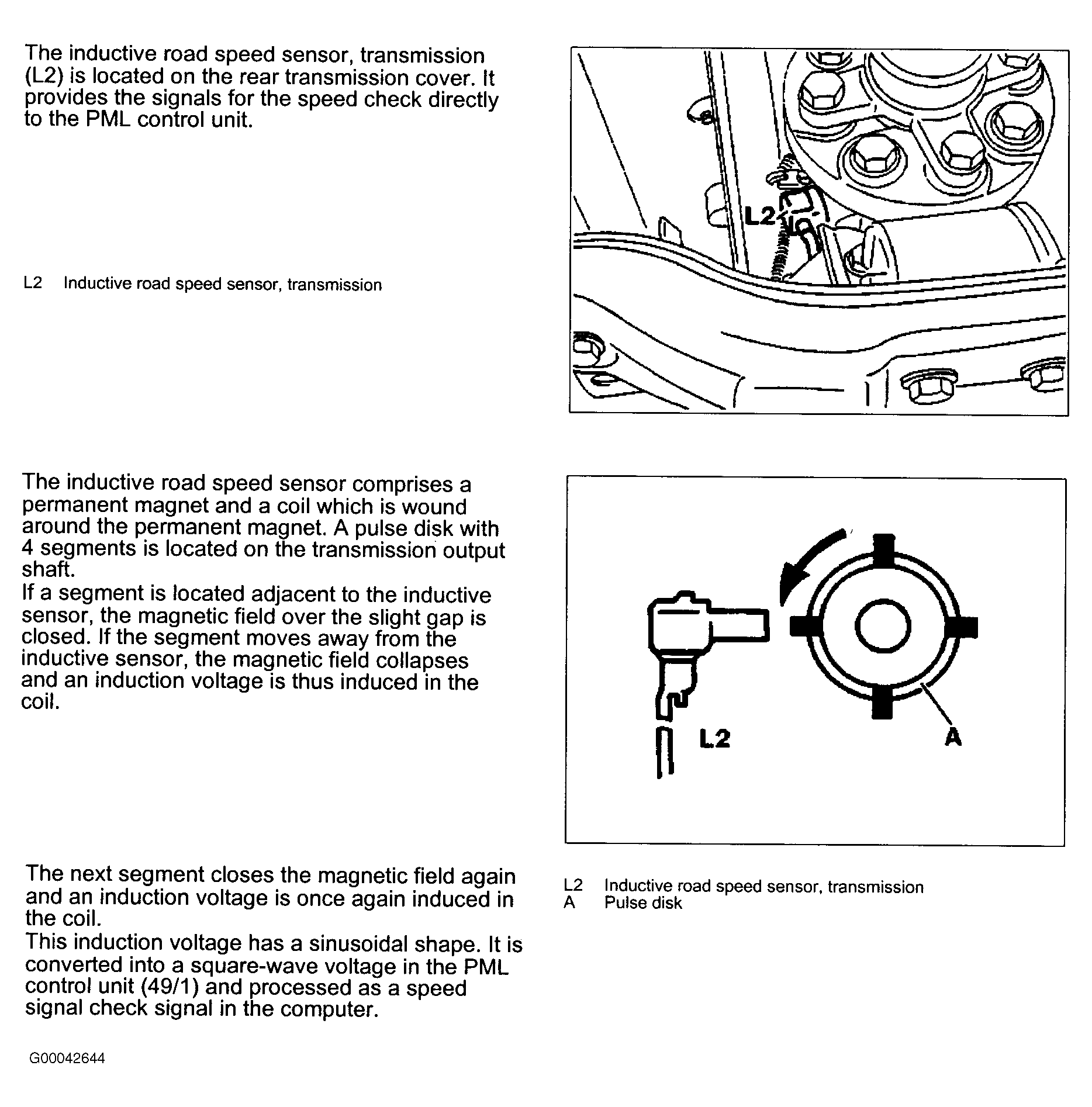

Fig 1: Inductive Road Speed Sensor In Transmission
G00042644Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
